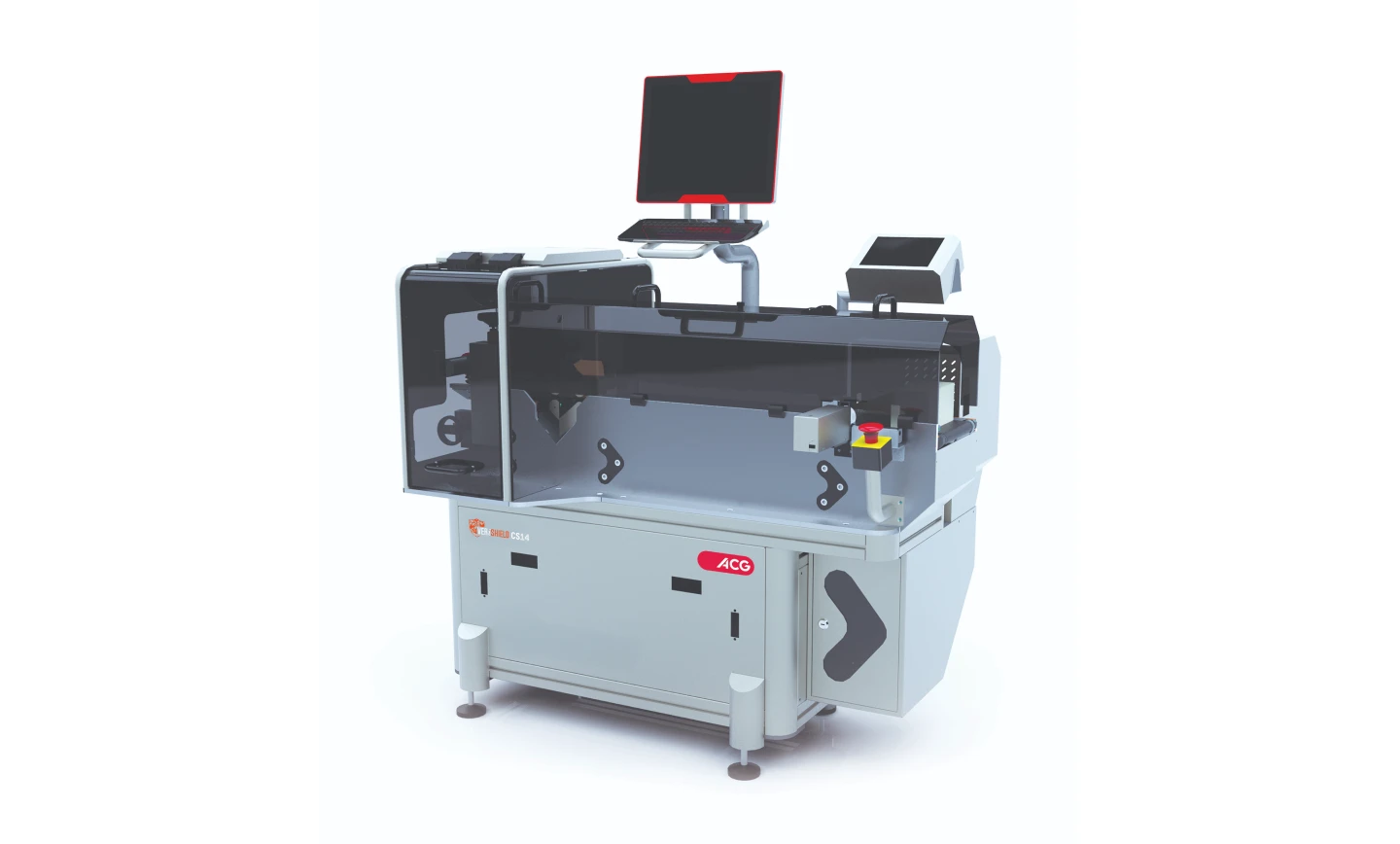

VeriShield CS14ACGI_VeriShield_CS14

About the VERISHIELD CS14

The CS series consists of a range of accurate and reliable carton serialisation systems. Easy to use, they can serialise cartons of various sizes, from small blister packs to large shipping containers. They comply with regulatory requirements all over the world and are suitable for providing a high level of security and traceability of pharmaceutical products.

VERISHIELD CS14 is a carton serialisation machine equipped with a check-weigher. The machine is adjustable to cartons of different dimensions and can be easily integrated with various carton packaging machines. Further, you can quickly change over between multi-carton sizes and, in the end, get a consolidated production report.

Functionality

Online print, inspect and reject with check-weigher

FeaturesBenefits

Compactly designed check-weighing solution with an accuracy of +0.5g

Occupies much lesser floor space as compared to a separate check-weigher, print and inspection unit

Online serialisation, barcode printing, data printing (GTIN, expiry, batch number and unique serial number as per GS1 guidelines)

Printing and inspection as per specific regulatory requirements

Supports both serialised and non-serialised batches

A single machine that meets diverse requirements of different regulations



Provision to print and inspect products for regulated and non-regulated markets

EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification

A regulatory-compliant, audit-friendly system

Features & Benefits

Compactly designed check-weighing solution with an accuracy of +0.5g

Occupies much lesser floor space as compared to a separate check-weigher, print and inspection unit

Online serialisation, barcode printing, data printing (GTIN, expiry, batch number and unique serial number as per GS1 guidelines)

Printing and inspection as per specific regulatory requirements

Supports both serialised and non-serialised batches

A single machine that meets diverse requirements of different regulations



Provision to print and inspect products for regulated and non-regulated markets

EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification

A regulatory-compliant, audit-friendly system

Technical specifications

    Machine dimensionsLength1,750 mm
    Width1,060 mm
    Height1,950±60 mm
    Maximum throughput

    150 cartons/min (for minimum carton size)

    Carton size rangeMinLength80 mm
    Width30 mm
    Height15 mm
    MaxLength180 mm
    Width90 mm
    Height90 mm
    Carton weightMin10 g
    Max500 g
    Field of view50 mm x 25 mm
    Interlock and safety

    Emergency stop
    Label low/carton closing/backdoor interlock
    Pneumatic pressure interlock
    Front door interlock
    Acrylic guard interlock

    Report types

    Batch-wise report
    Audit reports

    Also Available In

    ModelFunctionality
    VERISHIELD CS11

    Online print, inspect and reject

    VERISHIELD CS12

    Offline print, inspect and reject

    VERISHIELD CS14

    Online print, inspect and reject with check-weigher

    VERISHIELD CS16

    Online print, inspect and reject with tamper-evident labelling

    VERISHIELD CS17

    Online print inspect and reject with tamper-evident labelling

    VERISHIELD CS19

    Online print and inspection
