BACK TO ALL PRODUCTSAbout the VERISHIELD CS12
The CS series consists of a range of accurate and reliable carton serialisation systems. Easy to use, they can serialise cartons of various sizes, from small blister packs to large shipping containers. They comply with regulatory requirements all over the world and are suitable for providing a high level of security and traceability of pharmaceutical products.

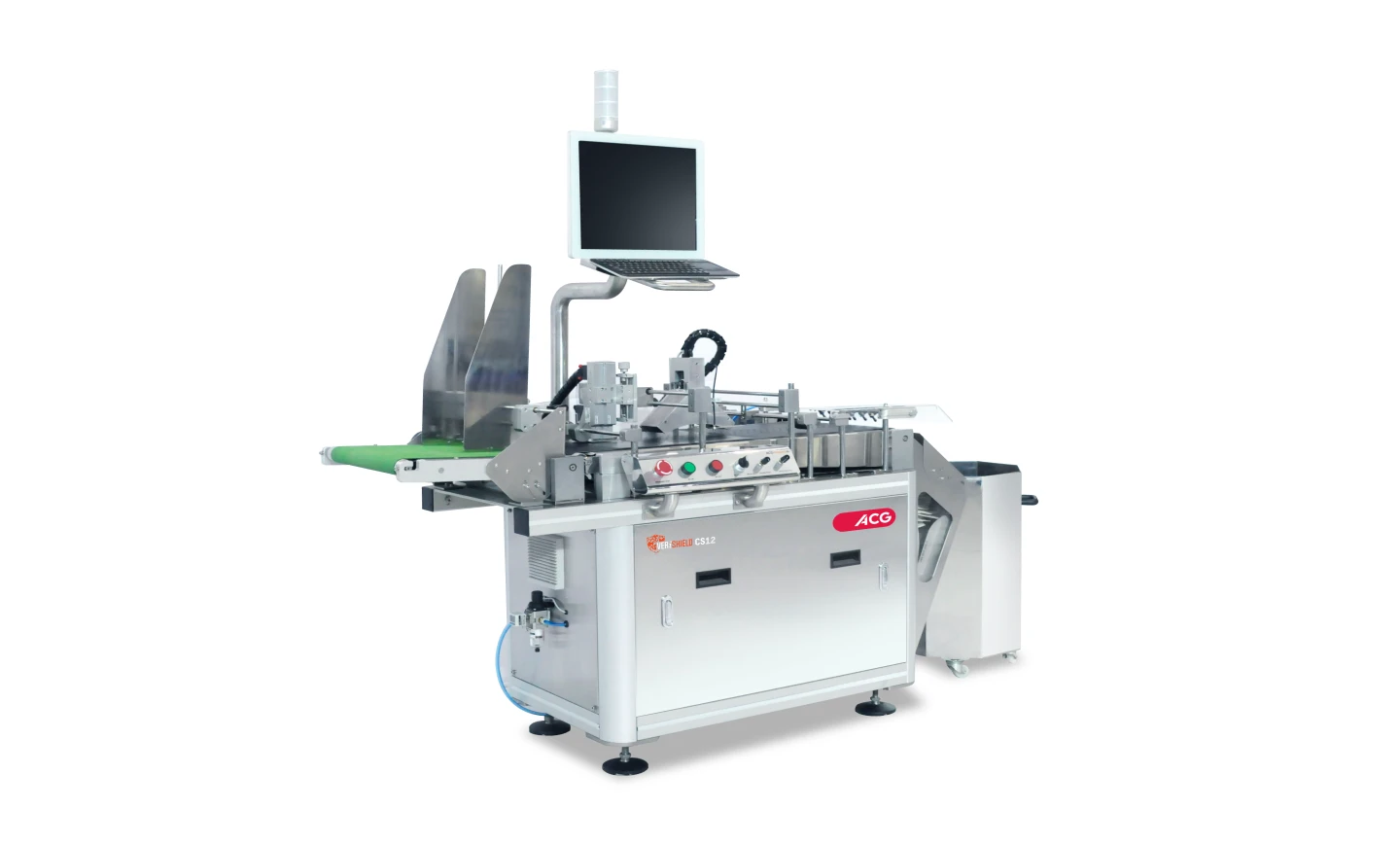

VERISHIELD CS12 allows you to serialise your cartons offline. The machine also prints, inspects, and rejects cartons ensuring only the correctly printed and serialised cartons reach the market.
Functionality
Offline print, inspect and reject
| Features | Benefits | |
|---|---|---|
Adjustable for different carton dimensions | Allows quick changeover between multi-carton sizes | |
Equipped with variable speed control | Flexibility to adjust speed as per online output requirements | |
Supports track & trace regulations of multiple countries | A single machine that fulfils diverse requirements of different regulations | |
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification | A regulatory-compliant, audit-friendly system | |
Works on serialised as well as non-serialised modes of operation | Option to print details on cartons based on printing format requirements |
Features & Benefits
Adjustable for different carton dimensions
Allows quick changeover between multi-carton sizes
Equipped with variable speed control
Flexibility to adjust speed as per online output requirements
Supports track & trace regulations of multiple countries
A single machine that fulfils diverse requirements of different regulations
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification
A regulatory-compliant, audit-friendly system
Works on serialised as well as non-serialised modes of operation
Option to print details on cartons based on printing format requirements
Technical specifications
| Machine dimensions | Length | 1,750 mm | |
| Width | 1,050 mm | ||
| Height | 1,840±65 mm | ||
| Maximum throughput | 200 cartons/min (for minimum carton size) | ||
| Carton size range | Min | Length | 65 mm |
| Width | 60 mm | ||
| Max | Length | 300 mm | |
| Width | 200 mm | ||
| Rejection system | Encoder based rejection system with lock and key rejection bin | ||
| Interlock and safety | Emergency stop | ||
| Report types | Batch-wise report | ||
