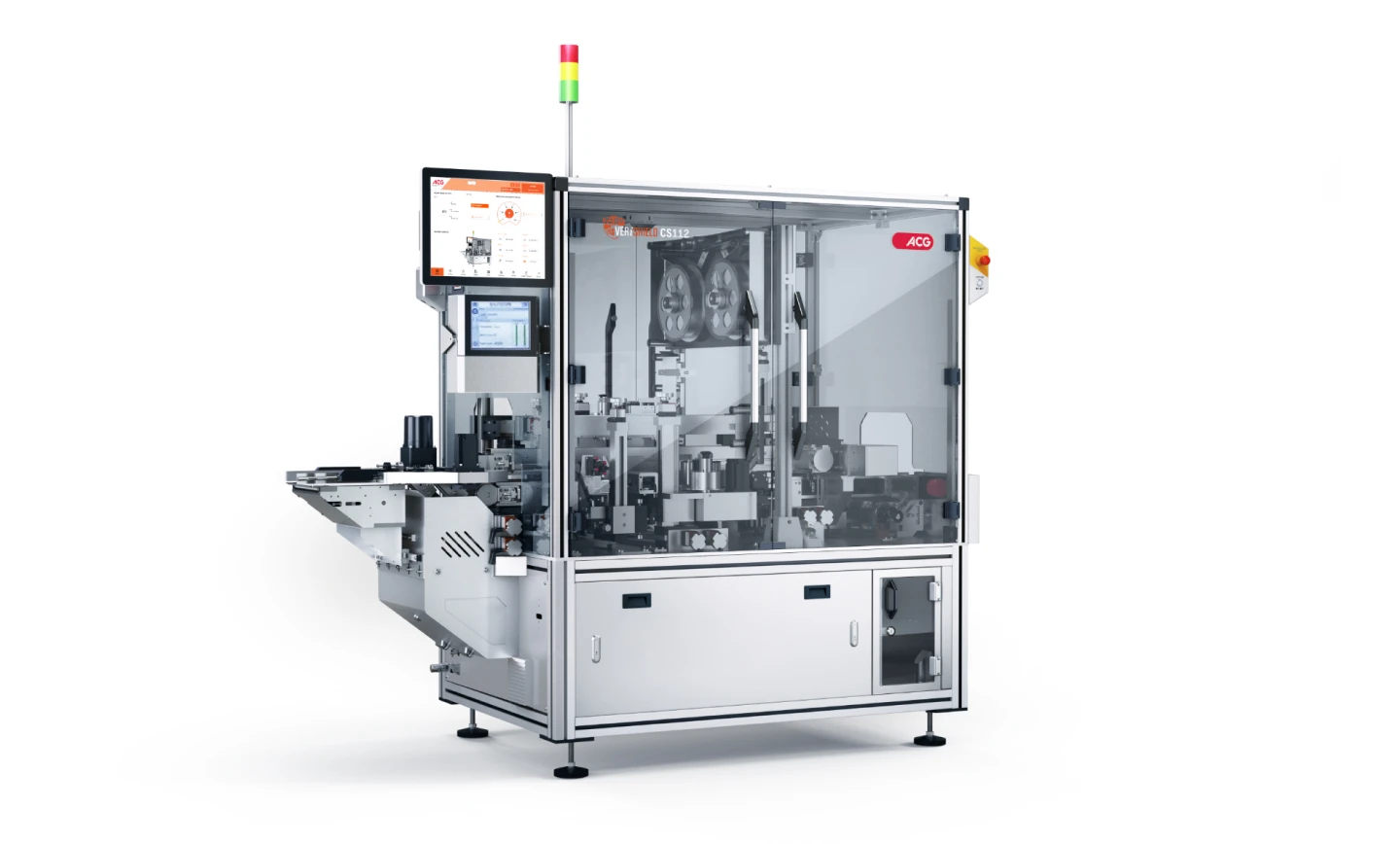

BACK TO ALL PRODUCTSAbout the VERISHIELD CS112
VERISHIELD CS112 is designed to handle everything in a single process, from carton serialisation, to tamper-evident labelling, to comprehensive inspection. The system not only prints and inspects cartons, but also rejects any that are serialised incorrectly or lack tamper-evident labels, thereby safeguarding product integrity and consumer trust. The operator-friendly interface streamlines operations, allowing for quick adjustments and easy monitoring of the system’s performance.
Applications
Batch coding, serialisation, verification of cartons, tamper-evident labelling
| Features | Benefits | |
|---|---|---|
Online rejection, based on the serialisation and inspection of tamper evident labels (through sensor-based input) | A single machine for printing, inspection, and label application verification and rejection | |
Supports speeds of up to 300 products / minute | Swift, automated inspection and rejection maintains production rates even for large or fast-moving batches | |
Minimal space required for integrating in-line | High-speed performance with a compact design | |
Uses servo motors for precise carton movement | Delivers superior accuracy | |
Accessibility of both applicators from the same side | Easy accessibility for machine setting | |
EU FMD, Annex 11 and FDA 21 CFR Part 11 compliant | Ideal for products manufactured in, or exported to Europe |
Features & Benefits
Online rejection, based on the serialisation and inspection of tamper evident labels (through sensor-based input)
A single machine for printing, inspection, and label application verification and rejection
Supports speeds of up to 300 products / minute
Swift, automated inspection and rejection maintains production rates even for large or fast-moving batches
Minimal space required for integrating in-line
High-speed performance with a compact design
Uses servo motors for precise carton movement
Delivers superior accuracy
Accessibility of both applicators from the same side
Easy accessibility for machine setting
EU FMD, Annex 11 and FDA 21 CFR Part 11 compliant
Ideal for products manufactured in, or exported to Europe
Technical specifications
Machine dimensions | Length | 2114 mm |
Width | 1040 mm (closed doors) | |
Height | 2086 ± 60 mm | |
Maximum throughput | Up to 300 packs per minute (for minimum carton size) | |
Carton Size | Minimum (65 L × 40 W × 15 H) mm | |
Camera FOV | 50 mm x 25 mm | |
