BACK TO ALL PRODUCTSAbout the QUALISHIELD CV 40
The QUALISHIELD CV series is a high-speed, high-resolution, multi-colour, camera-based solution for inspection of a variety of data, including barcodes, pharmacodes, 2D codes, batch details, and much more – on inspection media such as cartons, labels, leaflets, foils, tubes, and many others. You can install it on any carton- or blister-packing machine, and it’s retrofittable to a wide range of bottling, cartoning and manual packaging lines. The CV series can be integrated with various types of cameras, based on different needs.

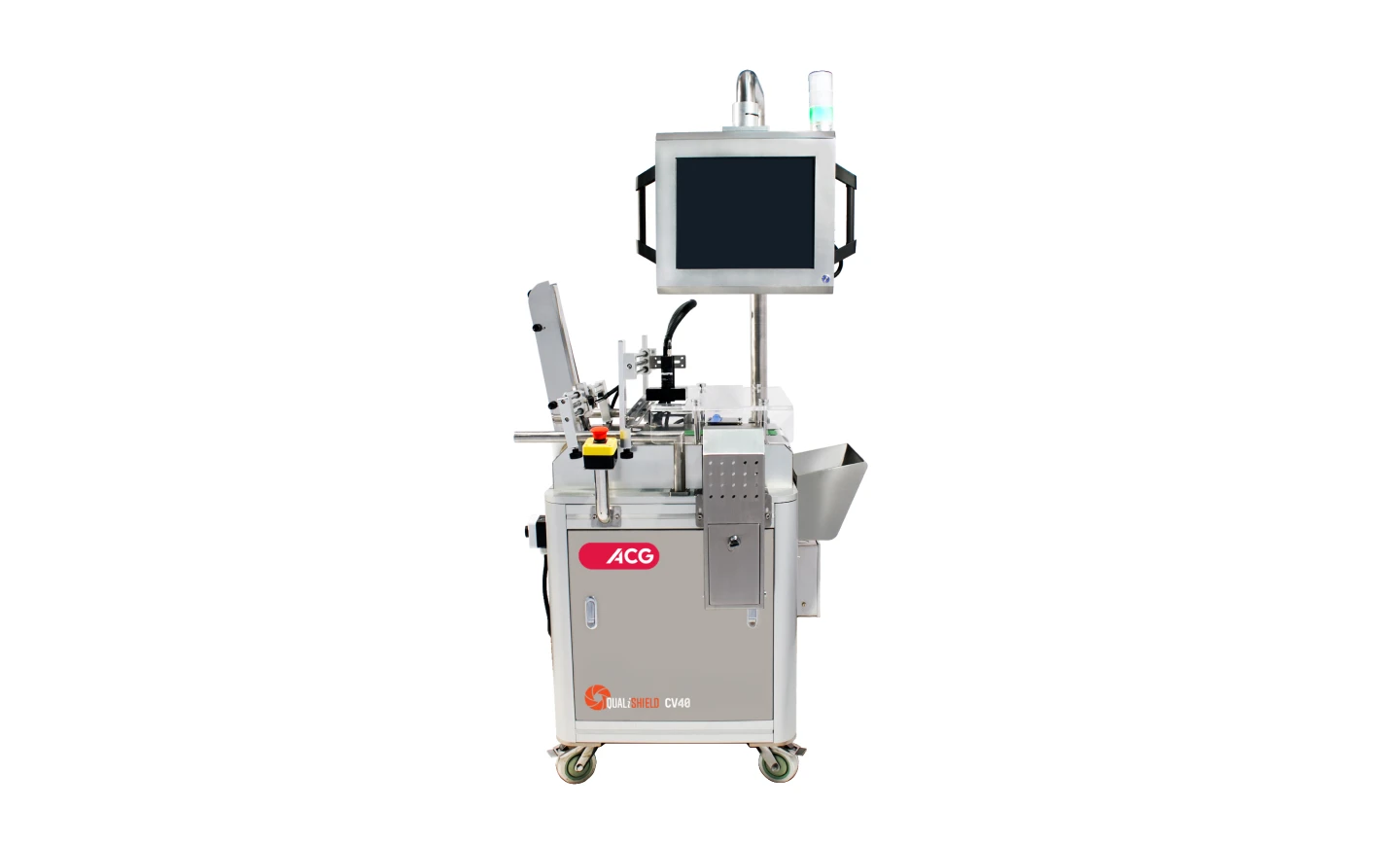

QUALISHIELD CV40 is an offline leaflet and booklet conveying system with an integrated camera system. It’s ideal for pharma code inspection where products are stacked in a feeder mechanism and passed one-by-one via conveyor belt for further inspection. CV40 also has separate bins for accepted and rejected products.
Application
Leaflet and booklet pharmacode inspection and rejection
| Features | Benefits | |
|---|---|---|
Operates with a speed of 120 products per minute | Compatible with all cartoning machines | |
Encoder-based rejection system with lock-and-key rejection bin | Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations | |
A sensor for stacking leaflets and booklets | Notifies the operator when leaflet feed is low, meaning fewer and shorter process interruptions | |
Compliant with 21 CFR Part 11 | A regulatory-compliant, audit-friendly system for greater peace of mind |
Features & Benefits
Operates with a speed of 120 products per minute
Compatible with all cartoning machines
Encoder-based rejection system with lock-and-key rejection bin
Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations
A sensor for stacking leaflets and booklets
Notifies the operator when leaflet feed is low, meaning fewer and shorter process interruptions
Compliant with 21 CFR Part 11
A regulatory-compliant, audit-friendly system for greater peace of mind
Technical specifications
| Machine dimensions | Length | 870mm | |
| Width | 755mm | ||
| Height | 1922±65mm | ||
| Speed | 120 products/min | ||
| Cameras | 1 | ||
| Supported carton sizes | Minimum | Length | 40mm |
| Width | 25mm | ||
| Height | 1.5mm | ||
| Maximum | Length | 60mm | |
| Width | 60mm | ||
| Height | 8mm | ||
| Minimum | Length | 80mm | |
| Width | 200mm | ||
| Height | 80mm | ||
| Maximum | Length | 25mm | |
| Width | 180mm | ||
| Height | 40mm | ||
