BACK TO ALL PRODUCTSAbout the QUALISHIELD CV10
The QUALISHIELD CV series is a high-speed, high-resolution, multi-colour, camera-based solution for inspection of a variety of data, including barcodes, pharmacodes, 2D codes, batch details, and much more – on inspection media such as cartons, labels, leaflets, foils, tubes, and many others. You can install it on any carton- or blister-packing machine, and it’s retrofittable to a wide range of bottling, cartoning and manual packaging lines. The CV series can be integrated with various types of cameras, based on different needs.

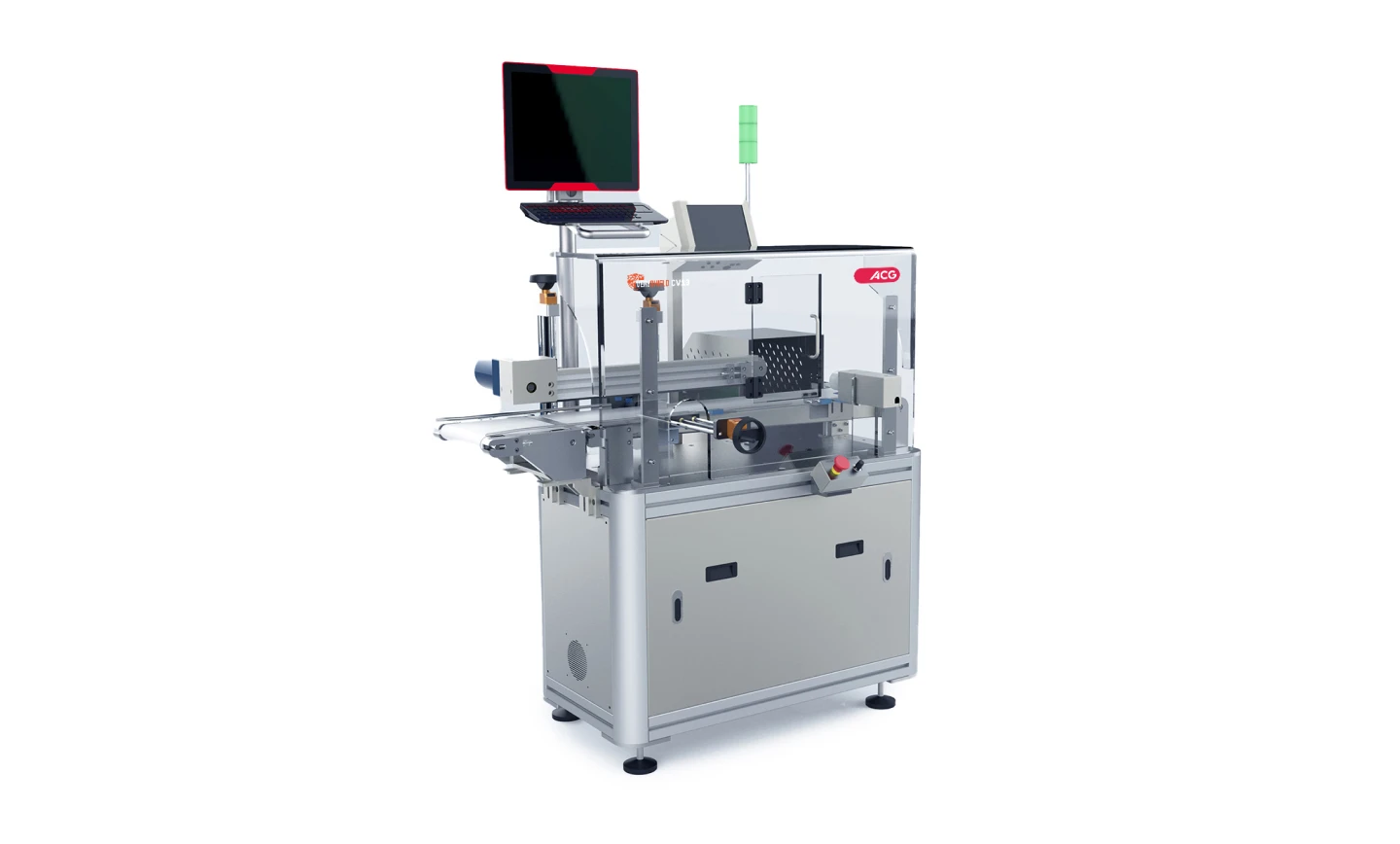

QUALISHIELD CV10 is an online carton-conveying system with an integrated printer and camera system. It’s an ideal solution for online carton code printing and inspection, and integrates seamlessly with any cartoning machine. You can also use it for manual carton feeding.
Application
Carton print inspection and online rejection system
| Features | Benefits | |
|---|---|---|
Speeds of up to 300 cartons per minute | Compatible with all cartoning machines | |
Encoder-based rejection system with lock-and-key rejection bin | Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations | |
Variable speed control | Set conveyor speeds manually according to output requirements | |
Compliant with 21 CFR Part 11 and CE certified | A regulatory-compliant, audit-friendly system for greater peace of mind |
Features & Benefits
Speeds of up to 300 cartons per minute
Compatible with all cartoning machines
Encoder-based rejection system with lock-and-key rejection bin
Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations
Variable speed control
Set conveyor speeds manually according to output requirements
Compliant with 21 CFR Part 11 and CE certified
A regulatory-compliant, audit-friendly system for greater peace of mind
| Machine dimensions | Length | 1210mm | |
| Width | 1000mm | ||
| Height | 1672±65mm | ||
| Speed | 300 cartons/min | ||
| Cameras | 1 | ||
| Supported carton sizes | Minimum | Length | 65mm |
| Width | 30mm | ||
| Height | 15mm | ||
| Maximum | Length | 200mm | |
| Width | 200mm | ||
| Height | 150mm | ||
