FBC FBC 125 X.one

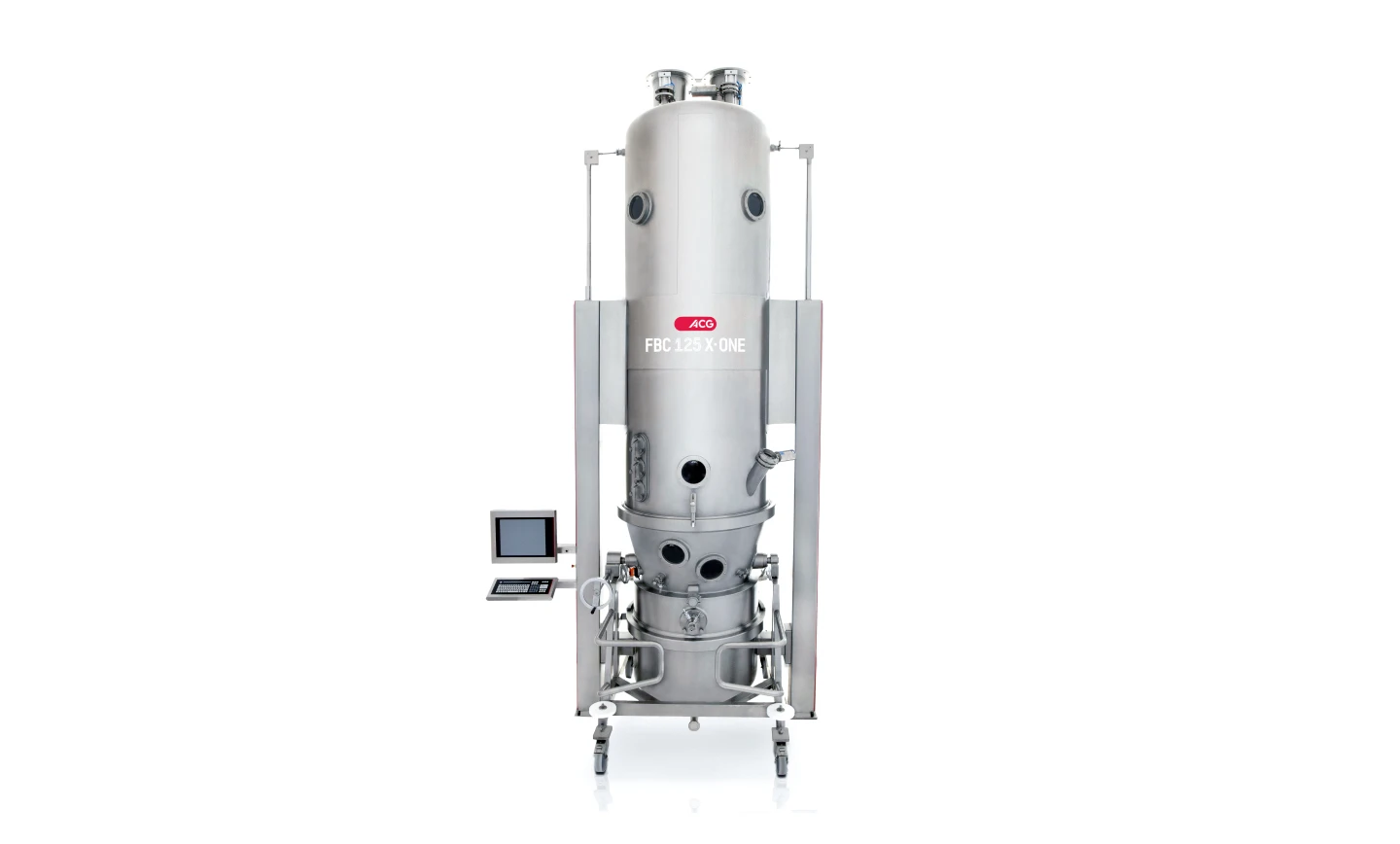

About the FBC 125 X•ONE

Supreme safety with ultimate versatility – that’s what you get with the FBC X•ONE series developed at our Design Centre in Mülheim, Germany. While you can use it for diverse applications, including drying, top-spray granulation and Wurster coating, its cutting-edge design and features don’t compromise process or operator safety. In short, you get the very best outcomes and unbeatable protection.

Drying, top-spray granulation, Wurster coating, rotor-based drug layering or tangential spray processes… the FBC 125 X•ONE does it all, for batches of up to 125 l.

Applications

Top-spray granulation, wet-mass drying, hot-melt granulation, tangential spray granulation, Wurster coating

Features Benefits

The 12-bar pressure shock-resistant system features the MOST™ (Maximum Operator Safety Technology) concept approved by the FSA and compliant with ATEX (Directive 2014/34/EU)

No mechanical deformation caused in case of a pressure-shock event



Production can be resumed with the machine in the shortest possible time



Far safer for the environment, thanks to a non-vented, fully contained design

Unique C-flanges

Prevents the transfer of the explosion pressure obeyond the machine

X•ONE inflatable seals

Safety at low pressure (as low as low as 4.5 bar)

QASV (Quick Action Stop Valves)

Ensures explosion is contained within 20 milliseconds of detection

Customised charging, discharging and WIP (wash-in-place) systems available in standalone and granulation-train configurations

Makes processing of granules and pellets highly efficient, while ensuring safety and achieving faster changeovers

ACG’s exclusive X•ONE command process control system

Compliant with ATEX (Directive 2014/34/EU), GAMP 5 and 21 CFR Part 11, this advanced technology allows intuitive, secure monitoring and control

Patented nozzles developed with Düsen-Schlick GmbH, Germany exclusively for ACG

Enhanced productivity, and simplified operation and cleaning

Features & Benefits

The 12-bar pressure shock-resistant system features the MOST™ (Maximum Operator Safety Technology) concept approved by the FSA and compliant with ATEX (Directive 2014/34/EU)

No mechanical deformation caused in case of a pressure-shock event



Production can be resumed with the machine in the shortest possible time



Far safer for the environment, thanks to a non-vented, fully contained design

Unique C-flanges

Prevents the transfer of the explosion pressure obeyond the machine

X•ONE inflatable seals

Safety at low pressure (as low as low as 4.5 bar)

QASV (Quick Action Stop Valves)

Ensures explosion is contained within 20 milliseconds of detection

Customised charging, discharging and WIP (wash-in-place) systems available in standalone and granulation-train configurations

Makes processing of granules and pellets highly efficient, while ensuring safety and achieving faster changeovers

ACG’s exclusive X•ONE command process control system

Compliant with ATEX (Directive 2014/34/EU), GAMP 5 and 21 CFR Part 11, this advanced technology allows intuitive, secure monitoring and control

Patented nozzles developed with Düsen-Schlick GmbH, Germany exclusively for ACG

Enhanced productivity, and simplified operation and cleaning

Technical specifications



Working volume*

 Top-spray granulationWurster coating
Min

33 l

9 l

Max

168 l

80 l

            *Dependent on bulk density

Also Available In

Model Size / Capacity
QUEST FB I

3 l (Small scale)

QUEST FB II X•ONE

3 l, 6 l, 9 l, 12 l (Small scale)

QUEST FB III X•ONE

55 l (Small scale)

FBC 125 X•ONE

125 l

FBC 250 X•ONE

250 l

FBC 500 X•ONE

500 l

FBC 800 X•ONE

800 l

FBC 1300 X•ONE

1,300 l

FBC 1800 X•ONE

1,800 l
