About the LEGACY 6100
To stay ahead of the pharmaceutical markets’ quality requirements, you need a robust and versatile machine that can match your production requirements.

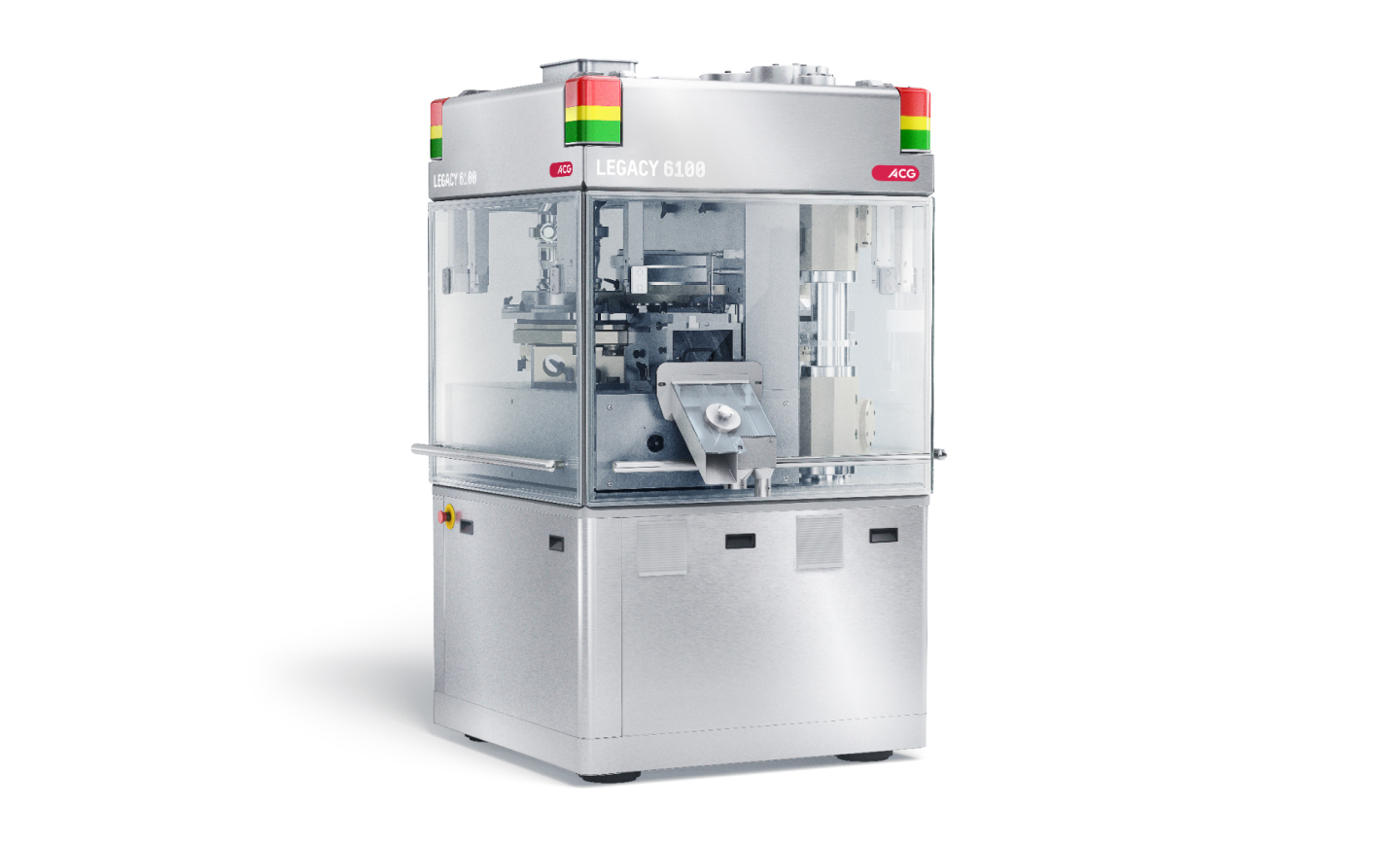

ACG’s LEGACY 6100 is a single-rotary, fully automated tablet compression machine with wide-ranging features that boost production efficiency and help you respond effectively to rising market demands.
Applications
Compression of pharmaceutical and nutraceutical granules and MUPS into monolayer tablets.
| Features | Benefits | |
|---|---|---|
Available with specialised kits for Multiple-Unit Particulate Systems (MUPS) and challenging formulations that use ingredients (powder) which are abrasive, corrosive or have poor flow properties |  | Reduced segregation and crushing of pellets and powders means improved tablet uniformity and dependable dissolution profiles
The specialised kit deals far more effectively with abrasive ingredients |
The largest feeder coverage (up to 9 feeders) in its class | | Accurate dosing for reliable high-speed production |
Interchangeable turret design | | Quick, easy changeover means reliable output of tablets of all shapes and sizes |
Highest production to Pitch Circle Diameter (PCD) ratio using patented PARAMOUNT turret | | Up to 27% increase in output |
Precise single sorting, sampling, and rejection of tablets at rated RPMs | | Ensures accuracy and repeatability of the required specification criteria (weight, height, thickness) of the tablets being produced |
Largest available compaction rollers (with a diameter of 290 mm) | | Effective compressions due to increased dwell time |
Features & Benefits
Available with specialised kits for Multiple-Unit Particulate Systems (MUPS) and challenging formulations that use ingredients (powder) which are abrasive, corrosive or have poor flow properties
Reduced segregation and crushing of pellets and powders means improved tablet uniformity and dependable dissolution profiles
The specialised kit deals far more effectively with abrasive ingredients
The largest feeder coverage (up to 9 feeders) in its class
Accurate dosing for reliable high-speed production
Interchangeable turret design
Quick, easy changeover means reliable output of tablets of all shapes and sizes
Highest production to Pitch Circle Diameter (PCD) ratio using patented PARAMOUNT turret
Up to 27% increase in output
Precise single sorting, sampling, and rejection of tablets at rated RPMs
Ensures accuracy and repeatability of the required specification criteria (weight, height, thickness) of the tablets being produced
Largest available compaction rollers (with a diameter of 290 mm)
Effective compressions due to increased dwell time
Technical specifications
| Punch type | D | B | BB | BBS |
| Punch stations | 37 | 45 | 61 | 67 |
| Output | 222,000 tablets/hr | 270,000 tablets/hr | 366,000 tablets/hr | 402,000 tablets/hr |
| Maximum tablet diameter | 25 mm | 16 mm | 13 mm | 11 mm |
