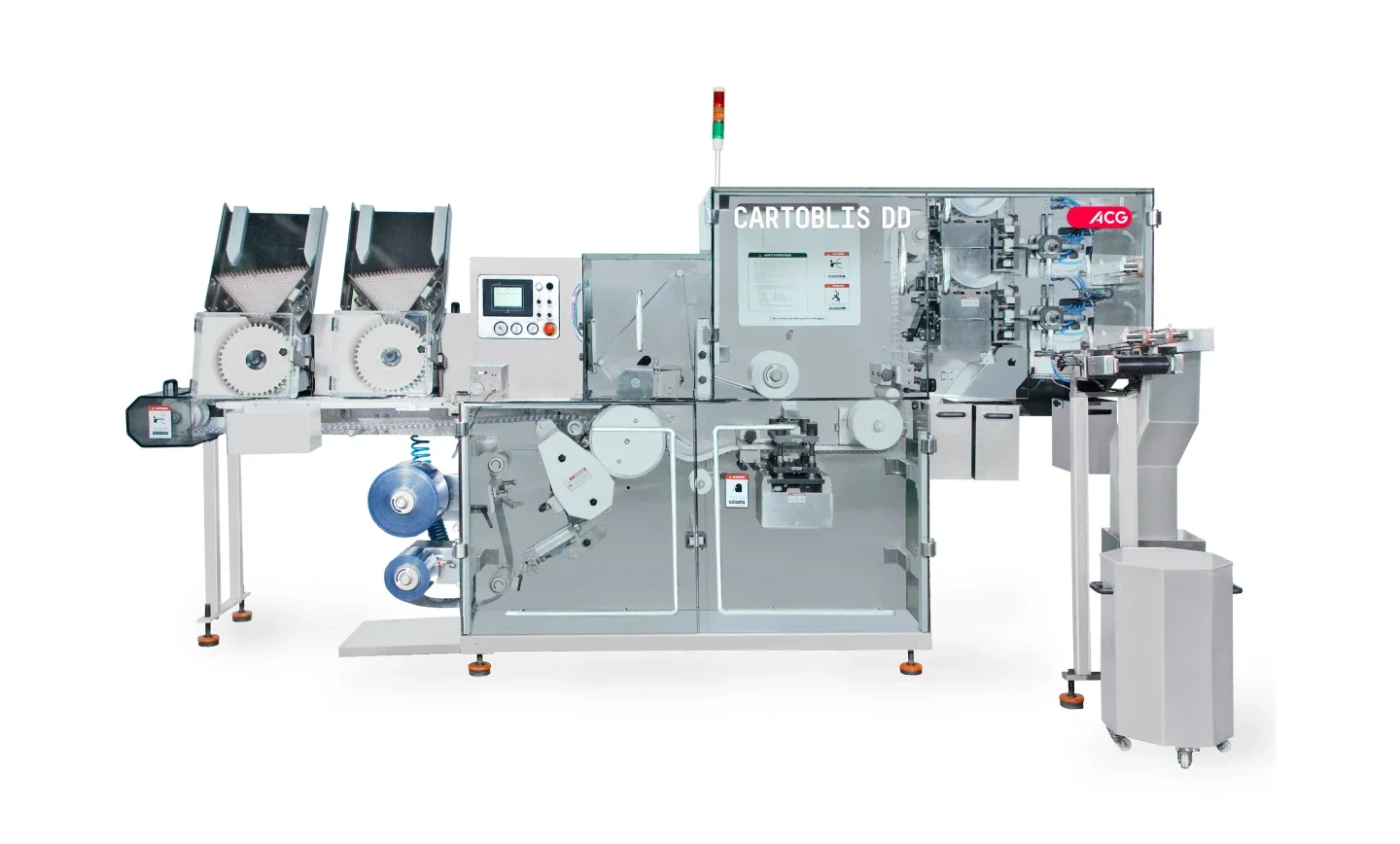

About the CARTOBLIS DD
A cost-effective deep-draw blister-packaging machine that integrates seamlessly with online cartoning machines in various layout configurations. Based on unique single-drum technology and advanced automation, CARTOBLIS DD offers high flexibility.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
| Features | Benefits | |
|---|---|---|
Capable of drawing deep cavities up to 28 mm |
 |
Flexibility to pack ampoules, vials, syringes in addition to tablets and capsules |
Vacuum-based rotary thermoforming with unique single-drum technology |
|
Better blister quality, using fewer format parts |
Fast punching and blister pickup |
|
High output with better blister quality |
Edge-to-edge punching |
|
Reduces foil wastage in web travel direction |
Integration with carton packaging machine |
|
Provides continuous feed to any online cartoner, fully automating the blister-cartoning operation |
Features & Benefits
Capable of drawing deep cavities up to 28 mm
Flexibility to pack ampoules, vials, syringes in addition to tablets and capsules
Vacuum-based rotary thermoforming with unique single-drum technology
Better blister quality, using fewer format parts
Fast punching and blister pickup
High output with better blister quality
Edge-to-edge punching
Reduces foil wastage in web travel direction
Integration with carton packaging machine
Provides continuous feed to any online cartoner, fully automating the blister-cartoning operation
Technical specification
| Output | Up to 4.5 m/min (Thermoforming) |
| Forming depth | Up to 12 mm (Thermoforming) |
| Format area | 200 mm x 100 mm |
| Forming materials | PVC, PVC/PVdC, Triplex (PVC/PE/PVdC) |
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) |
