BACK TO ALL PRODUCTSAbout the VERISHIELD CS16
The CS series consists of a range of accurate and reliable carton serialisation systems. Easy to use, they can serialise cartons of various sizes, from small blister packs to large shipping containers. They comply with regulatory requirements all over the world and are suitable for providing a high level of security and traceability of pharmaceutical products.

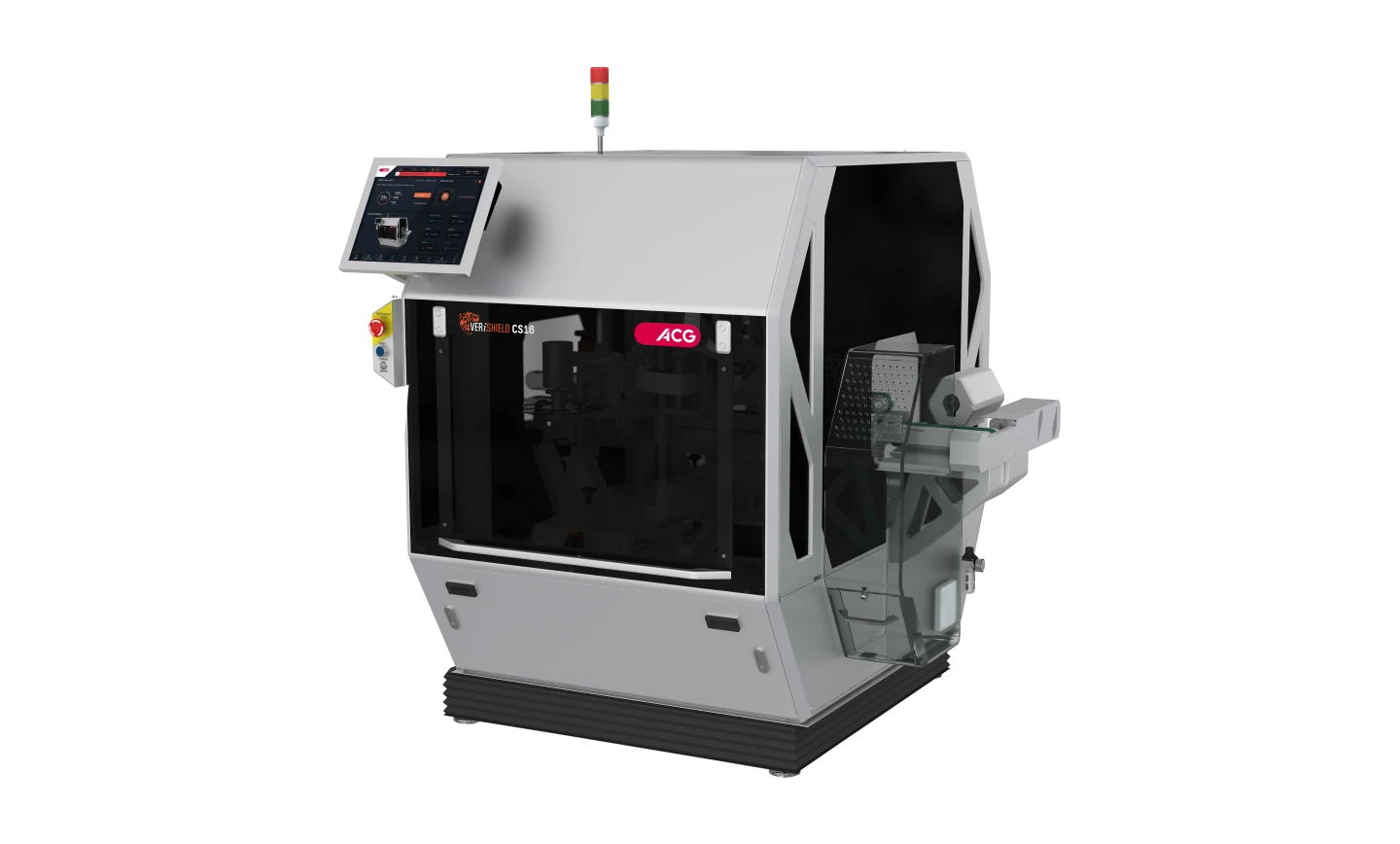

VERISHIELD CS16 is different from our other carton serialisation systems in that it also performs tamper-evident labelling. In addition, it also prints and inspects cartons, and rejects those that are serialised incorrectly or do not have tamper-evident labels. Its plug-and-play mode allows it to work with any cartoning line.
Functionality
Online print, inspect and reject with tamper-evident labelling
| Features | Benefits | |
|---|---|---|
High-speed machine with a compact design | Minimal space required for integrating in line | |
Online rejection based on serialisation and inspection of tamper evident label (through sensor-based input) | Printing, inspection, label application verification and rejection using a single machine | |
EU FMD regulation compliant | Ideal for products manufactured in or exported to Europe | |
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification | A regulatory-compliant, audit-friendly system |
Features & Benefits
High-speed machine with a compact design
Minimal space required for integrating in line
Online rejection based on serialisation and inspection of tamper evident label (through sensor-based input)
Printing, inspection, label application verification and rejection using a single machine
EU FMD regulation compliant
Ideal for products manufactured in or exported to Europe
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification
A regulatory-compliant, audit-friendly system
Technical specifications
| Machine dimensions | Length | 1,400 mm | |
| Width | 1,660 mm | ||
| Height | 1,800±65 mm | ||
| Maximum throughput | 300 cartons/min (for minimum carton size) | ||
| Carton size range | Min | Length | 65 mm |
| Width | 30 mm | ||
| Height | 15 mm | ||
| Max | Length | 200 mm | |
| Width | 150 mm | ||
| Height | 90 mm | ||
| Interlock and safety | Emergency stop button | ||
| Report types | Batch-wise report | ||
