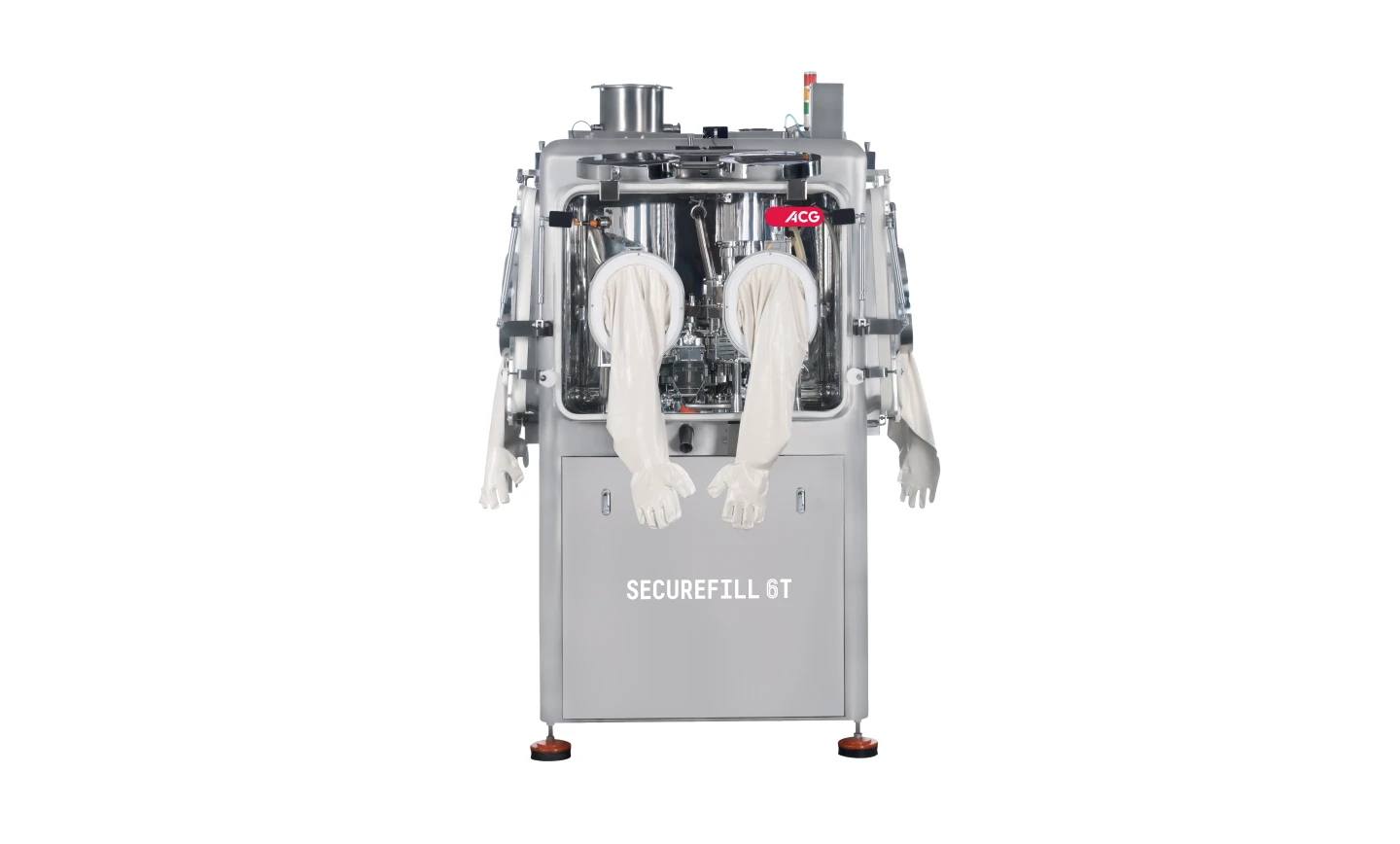

About the SECUREFILL 6T
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).
SECUREFILL 6T works best for small production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
| Features | Benefits | |
|---|---|---|
Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment |
 |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³ |
Provision for contained charging and discharging |
|
Integrated containment for upstream and downstream processes |
Wet-in-place system to ensure wetting of all suspended particles in the pharma zone |
|
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
Certified for highly potent and cytotoxic drugs requiring OEB up to level 4 |
|
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions |
|
Ensures safe production of high-quality capsules |
Features & Benefits
Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³
Provision for contained charging and discharging
Integrated containment for upstream and downstream processes
Wet-in-place system to ensure wetting of all suspended particles in the pharma zone
Protects the operator and the operational environment from formulation residues – and enables easy cleaning
Certified for highly potent and cytotoxic drugs requiring OEB up to level 4
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products
Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions
Ensures safe production of high-quality capsules
Technical specifications
| Capsule size | 00 - 5 |
| Maximum speed | 6,000 capsules/hr |
| OEL | 1-10 µg/m3 |
