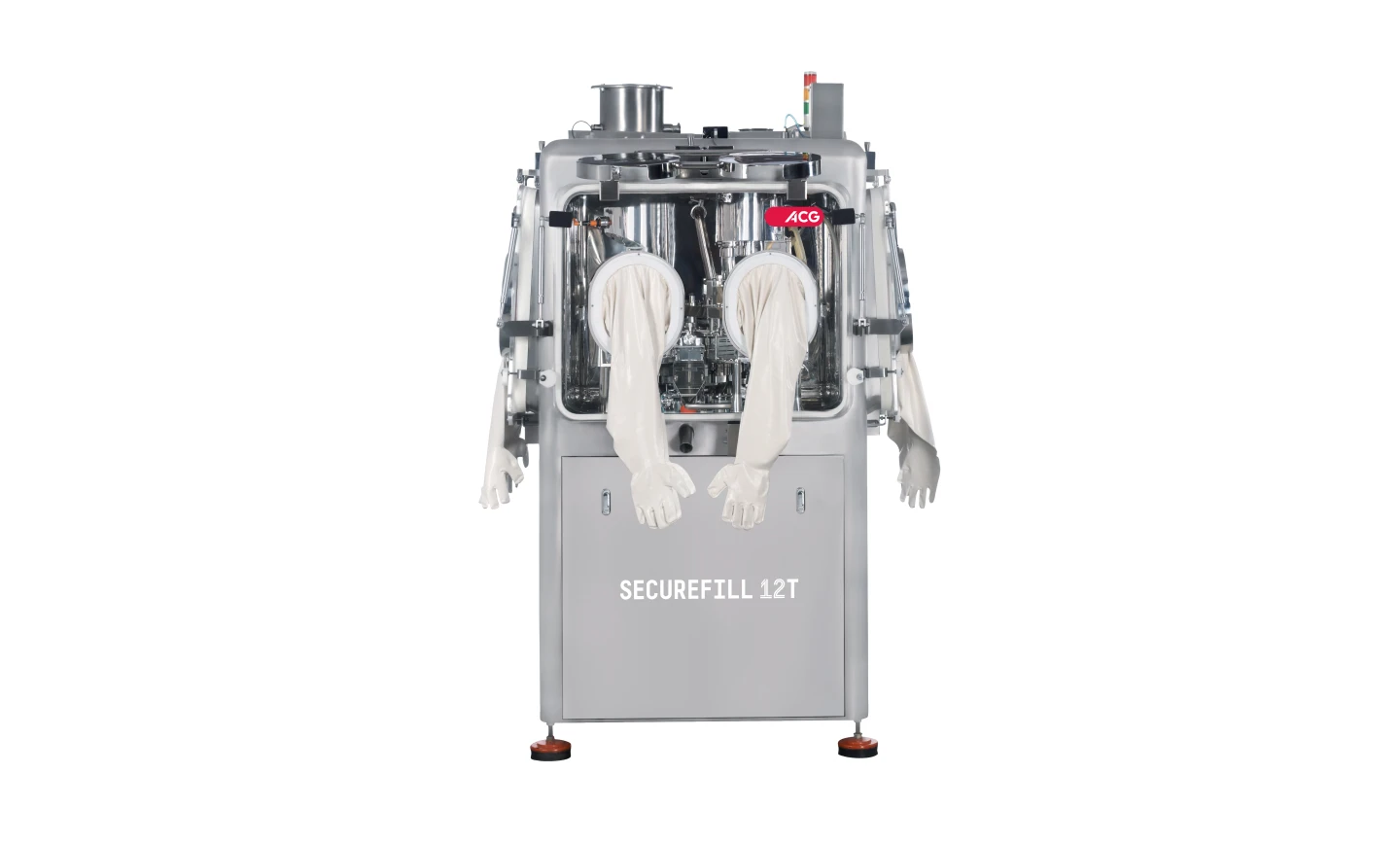

About the SECUREFILL 12T

The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).


SECUREFILL 12T works best for small to medium-size production batches.

Applications

Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules

Features Benefits

Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment

Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³

Provision for contained charging and discharging

Integrated containment for upstream and downstream processes

Wet-in-place system to ensure wetting of all suspended particles in the pharma zone

Protects the operator and the operational environment from formulation residues – and enables easy cleaning

Certified for highly potent and cytotoxic drugs requiring OEB up to level 4

Supports the production of life-saving drugs that contain HPAPIs, such as oncology products

Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions

Ensures safe production of high-quality capsules

Features & Benefits

Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment

Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³

Provision for contained charging and discharging

Integrated containment for upstream and downstream processes

Wet-in-place system to ensure wetting of all suspended particles in the pharma zone

Protects the operator and the operational environment from formulation residues – and enables easy cleaning

Certified for highly potent and cytotoxic drugs requiring OEB up to level 4

Supports the production of life-saving drugs that contain HPAPIs, such as oncology products

Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions

Ensures safe production of high-quality capsules

Technical specifications

Capsule size00 - 5
Maximum speed12,000 capsules/hr
OEL1-10 µg/m3

Also Available In

Model Maximum speed
SECUREFILL 6T

6,000 capsules/hr

SECUREFILL 12T

12,000 capsules/hr

SECUREFILL 25T

25,000 capsules/hr

SECUREFILL 40T

40,000 capsules/hr
