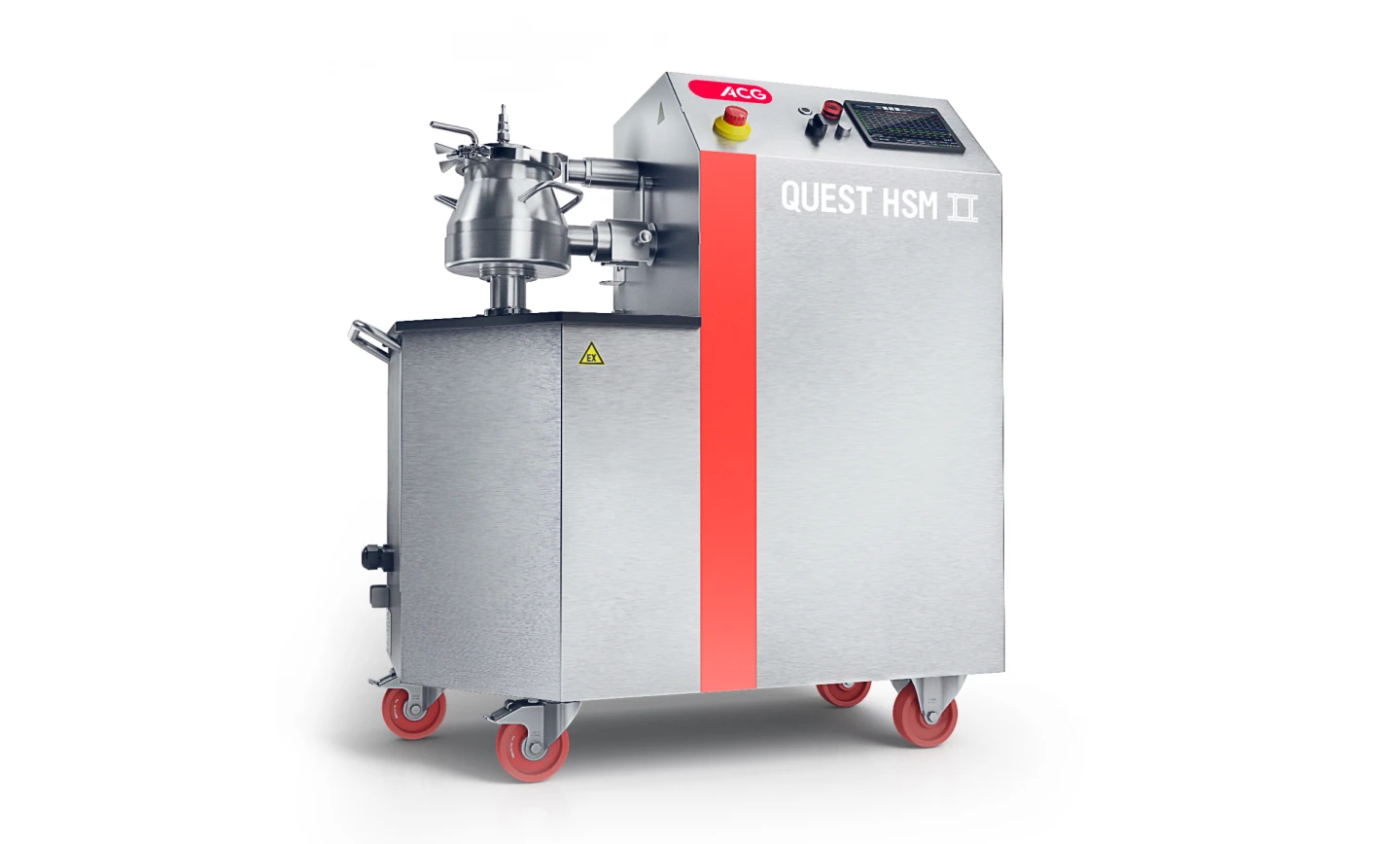

About the QUEST HSM II

An advanced series of high-shear mixer granulators that ensure faster processing and narrow particle-size distribution, while achieving content uniformity in the dry mix. The system is equipped with the ACG X•ONE command process control system and features the unique MOST™ (Maximum Operator Safety Technology) concept.

QUEST HSM II supports innovation at R&D level, and is designed to help ensure cGMP compliance.

Applications

Wet granulation

Features Benefits

A 12-bar pressure shock-resistant system featuring the MOST™ (Maximum Operator Safety Technology) concept approved by FSA in Germany and compliant with ATEX (Directive 2014/34/EU)

No mechanical deformation caused in case of a pressure-shock event



Production can be resumed in the shortest possible time



A far safer working environment, thanks to a non-vented, fully contained design

Available with Z-shaped impeller blades

Optimum flow of material in and out of the shear zone, by providing superior centrifugal force to the material in less process time

Standalone mobile plug-and-play system

Use wherever it’s needed in the lab – quickly and easily

Laser-cut multi-blade straight chopper

Breaks down lumps formed during granule formation, avoids ‘dead zones’, and achieves uniform binder distribution

Interchangeable bowls (2 l, 5 l, and 10 l)

Allows fully flexible batch sizes

Features & Benefits

A 12-bar pressure shock-resistant system featuring the MOST™ (Maximum Operator Safety Technology) concept approved by FSA in Germany and compliant with ATEX (Directive 2014/34/EU)

No mechanical deformation caused in case of a pressure-shock event



Production can be resumed in the shortest possible time



A far safer working environment, thanks to a non-vented, fully contained design

Available with Z-shaped impeller blades

Optimum flow of material in and out of the shear zone, by providing superior centrifugal force to the material in less process time

Standalone mobile plug-and-play system

Use wherever it’s needed in the lab – quickly and easily

Laser-cut multi-blade straight chopper

Breaks down lumps formed during granule formation, avoids ‘dead zones’, and achieves uniform binder distribution

Interchangeable bowls (2 l, 5 l, and 10 l)

Allows fully flexible batch sizes

Technical specifications

 Bowl size

2 l

5 l

10 l

Working volume*Min

0.6 l

1.5 l

3 l

Max

1.2 l

3 l

6 l

            *Dependent on bulk density

Also Available In

Model Size / Capacity
QUEST HSM II

2 l, 5 l, 10 l (Small scale)

QUEST HSM III

15 l, 30 l, 65 l (Small scale)

HSM 150 X·ONE

150 l

HSM 300 X·ONE

300 l

HSM 400 X·ONE

400 l

HSM 600 X·ONE

600 l

HSM 800 X·ONE

800 l

HSM 1200 X·ONE

1,200 l

HSM 2000 X·ONE

2,000 l (Extra large scale)
